Main lab

Manufacturer Name Device Version Connect Comment
Cisco nexus1000v-1 nexus1000v 4.2(1) Connect Cluster of 2 N1Kv VSM
+ 1 VEM (ESXi server)
+ SVS connection to vCenter appliance
Cisco nexus1000v-3 nexus1000v 4.2(1) Connect Standalone VSM (No VEM / SVS)
VMware esxi-5.1 esxi 5.1 server 5.1 Connect VMware ESXi 5.1 server
VMware vc-appliance vCenter appliance 5.1 Connect VMware vCenter 5.1 appliance
Cisco cisco-r1 7200 12.4(25d) Connect Cisco 7200 router
Cisco cisco-r2 7200 12.4(25d) Connect Cisco 7200 router
Cisco cisco-r3 3640 12.4(25d) Connect Cisco 3600 router
(with switch module)
Cisco cisco-r4 3640 12.4(25d) Connect Cisco 3600 router
(with switch module)
Cisco cisco-r5 7200 12.4(25d) Connect Cisco 7200 router
Cisco cisco-r6 7200 12.4(25d) Connect Cisco 7200 router
Juniper juniper1 juniper-router 10.4R1.9 Connect M router
Juniper juniper2 juniper-router 10.4R1.9 Connect M router
Juniper juniper3 juniper-router 10.4R1.9 Connect M router
Linux debian64 debian64 6.0.6 Connect debian 64 bit
Radware alteon alteon 27.0.0.0 Connect



Lab topology

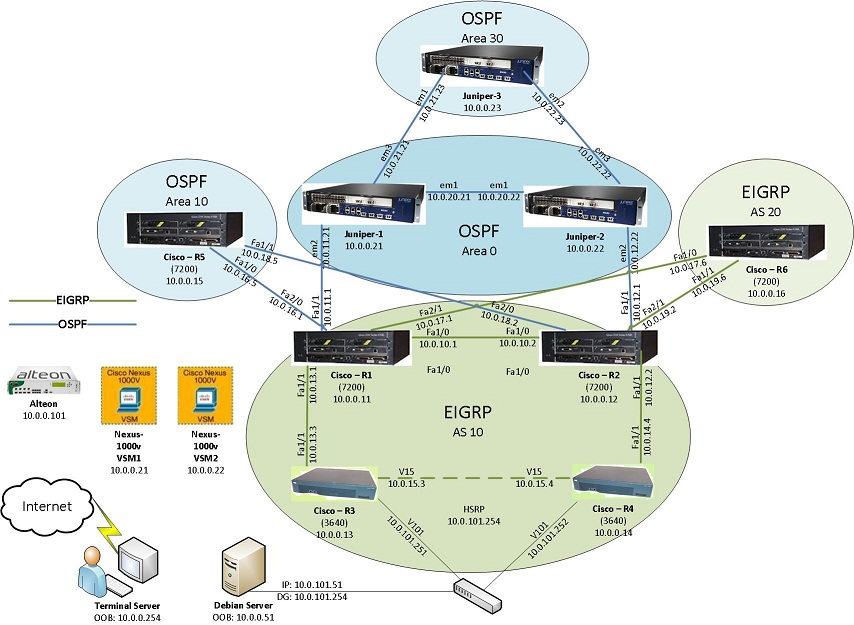

Main lab network topology







  •  Tunnel to labswitch -

To Test connection ping to 10.10.11.1 (LAN at labswitch.blogspot.com) from R5

details about labswitch at  http://labswitch.blogspot.com
For you to route between the labs, you must create your own tunnel between the labs
(R5 – int fa0/1 at this lab –> SW7 – int fa0/11 at labswitch.blogspot.com (net 10.10.11.0/24)



More info
Connections to all devices are totally free,
All devices are online and running in a lab environment
Devices are configured with OSPF, EIGRP, HSRP and more..
Feel free to change any configuration
All devices configuration is reset every 24 hours
If a device looses communication because of changing mgmt interface my nagios server will fix it :)
Very useful for testings and learning for CCNA and CCNP
More devices will be added later..
